Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
| Model No.: | GZP570 (61) | Makine malzemesi: | Karbon çelik, paslanmaz çelik |
|---|---|---|---|
| Sayı istasyonları: | 61 | Max Ana Baskı: | 100kn |
| Maksimum Baskı: | 40kn | Maksimum Üretim Kapasitesi: | 439200 PC/s |
| Motor gücü: | 11 kW | Maksimum tablet çapı: | Yuvarlak Tablet: 13mm, Düzensiz Tablet: 16mm |
| Maksimum dolgu derinliği: | 15 mm | Max Tablet Kalınlığı: | 6 mm |
| Max taret hızı: | 60 r/min | Genel boyut: | 1420*1200*1850 mm |
| Makine ağırlığı: | 3500 kg | Takım Standardı: | BB |
| Taret malzemesi: | HT300 ve 2CR13 | ||
| Vurgulamak: | GMP 21 CFR Part 11 High Speed Tablet Press,61 Stations Rotary Tablet Press Machine,439200 PCS/H Pharmaceutical Tablet Press |
||

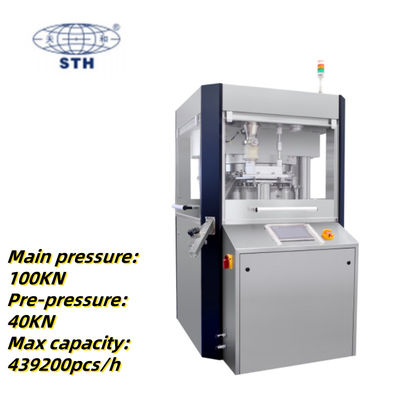

This double-side rotary tablet press machine transforms granular materials into round, irregular, or double-side engraved tablets. Ideal for pharmaceutical, chemical, foodstuff, and electronic industries.
| Model | GZP-61 |
|---|---|
| Number Stations | 61 |
| Tooling Standard | BB |
| Max Main Pressure (KN) | 100 |
| Max Pre-pressure (KN) | 40 |
| Max Tablet Diameter (mm) | Round Tablet: 13 | Irregular Tablet: 16 |
| Max Filling Depth (mm) | 15 |
| Max Tablet Thickness (mm) | 6 |
| Max Turret Speed (r/min) | 60 |
| Max Production Capacity (pcs/h) | 4,392,000 |
| Motor Power (kw) | 11 |
| Overall Size (mm) | 1420×1200×1850 |
| Machine Weight (kg) | 3500 |

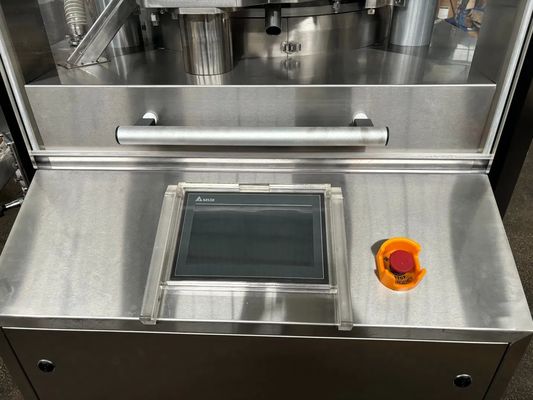

Handwheel-free control with automatic adjustment of main pressure, pre-pressure and filling volume via touch screen.
Features international brand components including Delta and Schneider.
11kw ABB motor with high-precision reducer for stable, high-torque power output.
Stable installation with double blade wheel feeding disc for excellent material adaptation and consistent powder filling.
