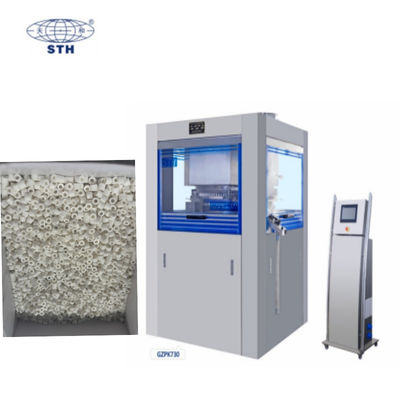

High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry

Çin High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry Tedarikçi
High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry Tedarikçi High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry Tedarikçi High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry Tedarikçi High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry Tedarikçi High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry Tedarikçi High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry Tedarikçi

Büyük resim :  High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry

Ürün ayrıntıları:

Sertifika: CE, ISO,GMP,EAC

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1
Fiyat: 90000
İletişim
Detaylı ürün tanımı
Model No.: GZPK730-75 Makine malzemesi: Paslanmaz çelik
Üretim kapasitesi: 63000 PC/s Takım Standardı: BB
Ana baskı: 100 KN Baskı öncesi: 100 KN
tablet çapı: 13 mm Doldurma derinliği: 15 mm
tablet kalınlığı: 6 mm Ana motor: 15 KW
Max taret hızı: 70 R/Dk Genel boyut: 1700*1600*1900 mm
Makine ağırlığı: 4800 kilo HMI ekran boyutu: 10 inç
Taret malzemesi: HT300 ve 2CR13
Vurgulamak:

630000 PCS/H Rotary Tablet Press

,

15kW Motor Tablet Press Machine

,

Pharmaceutical Rotary Tablet Press

GZPK730 Series High Speed Rotary Tablet Press Machine
High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry 0 High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry 1
Application
This double-sided rotary tablet press converts granular materials into round, irregular, or double-side engraved tablets. Ideal for pharmaceutical, chemical, food, and electronic industries.
Key Features
  • High-speed operation with multiple punches and double press rollers for mass production
  • Stainless steel construction with fully enclosed housing and hardened turret surface for GMP compliance
  • Advanced tableting system with twice compression forming for reliable performance and consistent tablet weight
  • Transparent glass enclosure for contamination-free compression compartment
  • Double impeller force feeder improves granule flow and filling precision
  • Double-side lifting tooling track for balanced stress and wear resistance
  • High-performance electrical control system for precise operation
  • Automatic central lubrication system extends machine lifespan
Special Notes
GZPK730 Model: Features advanced operation system with tablet weight control, allowing easy parameter adjustment without handwheels. Includes process parameter recording for production batch control.
Technical Specifications
Model GZPK-51 GZPK-63 GZPK-75 GZPK-81
Number of Station 51 63 75 81
Tooling Standard D B BB BBS
Max Tablet Diameter (mm) 25 (Round)
25 (Irregular)		 18
19		 13
16		 13
16
Max Filling Depth (mm) 20 18 15 15
Max Production Capacity (pcs/h) 428,400 529,200 630,000 680,000
Motor Power (KW) 11
Dimensions (mm) 1700×1600×1900
Weight (kg) 4800
Detailed Features
High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry 2
HMI Touch Screen (10 inch Delta)
  • Displays pressure value for each punch
  • Automatic adjustment of main pressure, pre-pressure and tablet weight
  • 3-level management authority with product formula management
  • Optional CFR 21 part 11 electronic record and signature function
  • Upgraded electrical system with industrial computer and separate cabinet
High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry 3
Automatic Lubrication System
  • Separate lubrication for punches/tracks (oil) and shafts/bearings (grease)
  • Extends component lifespan and maintains optimal performance
High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry 4

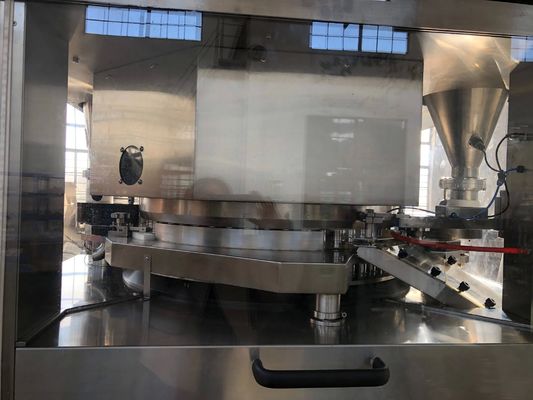

Turret Structure
  • Three-part construction using HT300 & 2Cr13 materials
  • Hardened surface layer for wear resistance
  • Upper punch with oil protect ring and dust proof ring
  • Lower punch with dust proof ring
  • Fully enclosed working turret
  • Double-side lifting tooling track for balanced stress
Packaging & Shipping
High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry 5
  • Wooden packaging meets international export standards
  • Free packaging included
  • Delivery within 15-45 working days
  • Multiple shipping options: SEA, AIR, and EXPRESS
Certifications
High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry 6
