Ürün ayrıntıları: |
| İşlev: | Masa Pres Yapımı | Müşteri: | ABD/Meksika/Brezilya/İspanya'da geniş |
|---|---|---|---|
| Boyut (l*w*h): | 960 × 1150 × 1900mm | İstasyon: | 29/35/39/41 |
| Öğe: | Döner Tablet Pres Makinası | Hız: | 40rpm/dak |
| Maksimum kapasite: | Saatte 139200Tablet | Makine ağırlığı: | 2000kg |
| Uygun malzeme: | Toz, taneli | Garanti hizmetinden sonra: | Video Teknik Destek, Çevrimiçi Destek |
| Güç: | 7.5kw | Garanti: | 1 yıl |
| Yumruk takımları: | IPT-D Takım Standardı | Malzeme: | paslanmaz çelik |

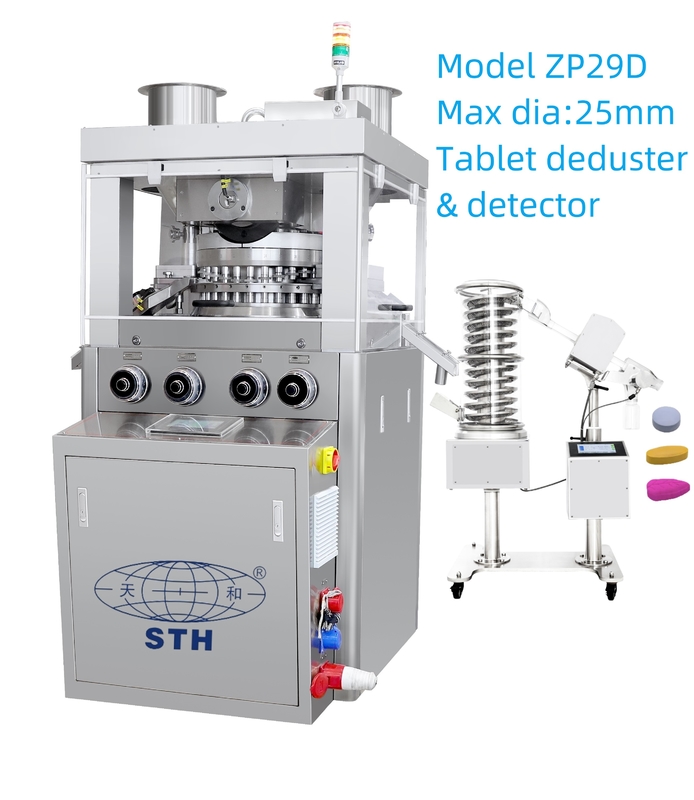

TIANHE 29D Rotary tablet press machine 25mm effervesent/milk/candy tablet
TIANHE 29D Rotary tablet press machine 25mm effervesent/milk/candy tablet Advantage
1. Double press type with high productivity, suitable for mass production of tablet

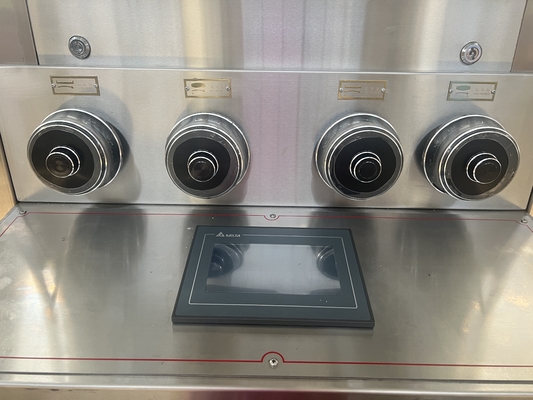

2. HMI operation interface

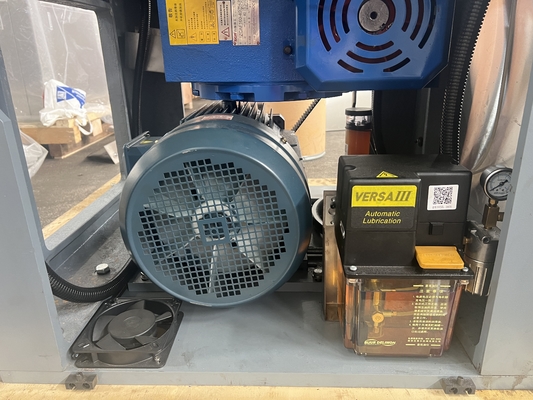

3. Automatic lubrication system
4. Various safety protection functions
5. Max diameter 25mm, D tooling
TIANHE 29D Rotary tablet press machine 25mm effervesent/milk/candy tablet Main technical parameters:
|
Model |
ZP-29 |
ZP-35 |
ZP-39 |
ZP-41 |
|
|
Number of Stations |
29 |
35 |
39 |
41 |
|
|
Tooling Standard |
D |
B |
BB |
BBS |
|
|
Max Pressure (KN) |
120 |
100 |
|||
|
|
round tablet |
25 |
18 |
13 |
11 |
|
Max Tablet Diameter (mm) |
irregular tablet |
25 |
19 |
16 |
13 |
|
Max Filling Depth (mm) |
20 |
18 |
15 |
15 |
|
|
Max Tablet Thickness (mm) |
8 |
7 |
6 |
6 |
|
|
Max Turret Speed (r/min) |
40 |
||||
|
Max Production Capacity (pcs/h) |
139200 |
168000 |
187200 |
196800 |
|
|
Motor Power (kw) |
7.5 |
5.5 |
|||
|
Overall Size (mm) |
960×1150×1900 |
||||
TIANHE 29D Rotary tablet press machine 25mm effervesent/milk/candy tablet Introduction:
ZP420 series rotary tablet press is a new type of tablet press machine recently developed by our company. It has novel appearance, reasonable structure, convenient operation, stable running, safe & reliable electrical protection functions, and it meets the latest GMP requirement. It is an ideal model choice for upgrading instead of old ones.
TIANHE 29D Rotary tablet press machine 25mm effervesent/milk/candy tablet Application:
This machine is a double-press type continuous automatic tablet press machine for pressing granular raw materials into tablets. It is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries and suitable for pressing a variety of tablets, such as: medicine tablets, candy tablets, calcium tablets, camphor pills, slat tablets and powder metallurgy products.
Detail information
Company profile
SHANGHAI TIANHE PHARMACEUTICAL MACHIENRY CO.,LTD (STH) was founded in 1992. The company is located in Chongming island Shanghai,China. In the 40 years since its establishment, STH has successfully achieved an extraordinary leap based on the strategy of "brand-opening and terminal-oriented". Development and become a mature enterprise in the tablet press machine industry in one fell swoop.
STH mainly produces tablet press machine, packing machine, processing equipment suitable in Pharmacy, Foods, Chemical industry. And has independent large-scale research and development institutions in the same industry in China, a complete manufacturing system and a huge marketing service network. It is an international manufacturing company integrating R&D, manufacturing, marketing and service.
STH’s machines have been sold all over the world (70 countries), such as: Europe, Canada, New Zealand, Southeast Asia,Pakistan, Iran, Algeria etc. The quality of the products has been significantly improved in Pharmacy, Foods, Chemical industry, and they are favored by customers at home and abroad.
Company mission: focus on quality and service
Service:
Warranty:
Our machine is under warranty for 12 months. Most components are free-replacement warranty,but the client needs to pay the DHL fee . Artificial and thunder strike damage is beyond the scope of the warranty. Spare parts are not in the warranty time.
After Sales Service :
Our engineer is available to provide after sales service oversea. Customers need to afford
the visa, tickets , accommodation, hotel and 100 USD per day.
Technical Support: We will be a consultant for clients about the technical problem before
order, provide drawing specification, design customized project, analyze and solve
technical problem.
Operation Training:
We are pleased to receive client’s technician to our factory and learn the operation course,
take photo, video.
